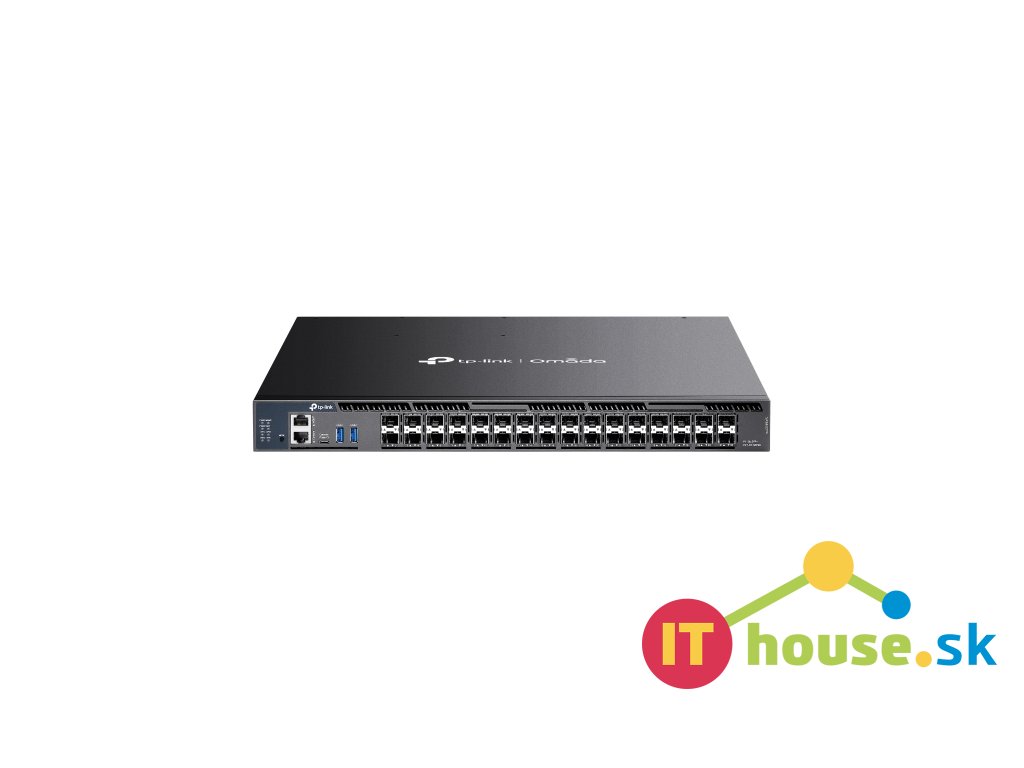

SX6632YF SX6632YF Omada 26x10G stack L3 switch 6x25G Slots

Podrobný popis

SX6632YF Omada 26portový stohovatelný managovaný agregační switch L3 10G se 6 sloty 25G
Funkce
26× 10G slotů SFP+ a 6× 25G slotů SFP28
Přepínací kapacita 820 Gb/s
Fyzické stohování pro vestavěnou redundanci a výkonnost
Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
Vysoká dostupnost díky dvěma napájecím zdrojům vyměnitelným za provozu
, VRRP a ERPS
Centralizovaná správa cloudu prostřednictvím kontroléru Omada SDN
Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware

Interface
6× 10/25G SFP28 Slots
26× 1/10G SFP+ Slots
2× USB 3.0 Ports
1× RJ45 Console Port
1× USB Type C Console Port
1× RJ45 Management Port Fan Quantity
Four field-replaceable and hot-swappable fans (N+1 redundant) Physical Security Lock
Yes Power Supply
Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) Power Consumption
86.7 W (110 V/60 Hz) Dimensions ( W x D x H )
440 × 380 × 44 mm Mounting
Rack Mountable Max Heat Dissipation
295.85 BTU/hr (110 V/60 Hz)

Výkon

Switching Capacity
820 Gbps Stacking
Stacking Number: 8
Stacking Port: 25G SFP28
Stack Bandwidth: Up to 300 Gbps (6 stack ports) Packet Forwarding Rate
610.1 Mpps MAC Address Table
128 K Packet Buffer Memory
8 MB Jumbo Frame
9 KB

Software

Quality of Service

-Class of Service
8 Queues of Priority
Port Priority
IEEE 802.1p Priority
DSCP Priority
Queue Min-Bandwidth
Schedule Mode (SP, WRR, SP+WRR) -Bandwidth Control
Rate Limit
Strom Control -User-Defined OUI -Smoother Performance -Action for Flows
QoS remark (802.1P Remark, DSCP Remark)

L3 Features

-IP Interfaces:
IPv4: Max 256, IPv6: Max 256 -Static Routing
IPv4: Max 2,048, IPv6: Max 1,024 -Host Route Table: Max 15,300 entries -RIP: Version v1/v2, Max 102,400
RIPng: Max 51,200 -OSPF: Version v2/v3,
v2: Max 102,400
v3: Max 51,200 -VRRP: Version v2/v3, Max 64 groups -ECMP: 256 entries, max 32 ECMP Nexhops per Destination -Static ARP
1,024 static entries -Dynamic ARP
24,576 dynamic entries -Proxy ARP -DHCP Server:
Max 8K IP Pools
Max 1,000 Manual Binding Entries -DHCP Relay:
Relayed Interface
Relayed VLAN

L2 and L2+ Features

-Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 ports per group
Up to 120 LAG Groups -Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
Up to 64 MSTI instances (4 at Omada controller mode)
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect -Loopback Detection
Port based
VLAN based -Flow Control
802.3x Flow Control -Supports 4,093 IGMP groups -ERPS: Up to 64 ERPS rings -Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both -RSPAN -Mac Address
MAC Address Table
Static MAC: Max 128 entries
Dynamic MAC Address: Max 128K entries
Filtering MAC Address: Max 128 entries
Virtual MAC (only supported in standalone mode)

Advanced Features

-Automatic Device Discovery -Batch Configuration -Batch Firmware Upgrading -Intelligent Network Monitoring -Abnormal Event Warnings -Unified Configuration -Reboot Schedule

ISP Features

-802.3ah Ethernet Link OAM -L2PT (Layer 2 Protocol Tunneling) -Device Link Detect Protocol (DLDP) -DDM -sFlow -PPPoE ID Insertion

VLAN

-VLAN Group (802.1q VLAN)
Max 4K VLAN Groups -802.1Q Tagged VLAN -MAC VLAN entries: 200 -Multicast VLAN -Management VLAN -VLAN VPN (QinQ): Max 256 entries -GVRP -Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries -VLAN VPN
VLAN Mapping
VLAN Replace -Voice VLAN -Private VLAN

Security

-Port Isolation -CPU-Deffend -ARP Inspection (Dynamic ARP Inspection) -DoS Defend -IP-MAC-Port Binding
1,024 Entries
DHCP Snooping
ARP Inspection
IPv4 Source Guard -IPv6-MAC
Port Binding
1,024 Entries
DHCPv6 Snooping
ND Detection
ND Snooping
IPv6 Source Guard -DHCP Filter -Static/Dynamic Port Security
Up to 64 MAC addresses per port -Broadcast/Multicast/Unknown-unicast Storm Control
kbps/ratio control mode -802.1X
Port base authentication
Mac base authentication
VLAN Assignment
MAB
Guest VLAN
Support RADIUS authentication and accountability
AAA (including TACACS+) -Secure web management through HTTPS with SSLv3/TLS 1.2 -Secure Command Line Interface (CLI) management with SSHv2 -IP/Port/MAC based access control

Management

Management Features

-Web-based GUI -Command Line Interface (CLI) through console port, telnet -SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups) -SDM Template -DHCP/BOOTP Client -802.1ab LLDP/LLDP-MED -DHCP Auto Install -Dual Image, Dual Configuration -CPU Monitoring -Cable Diagnostics -Password Recovery -SNTP -System Log
